Product Description

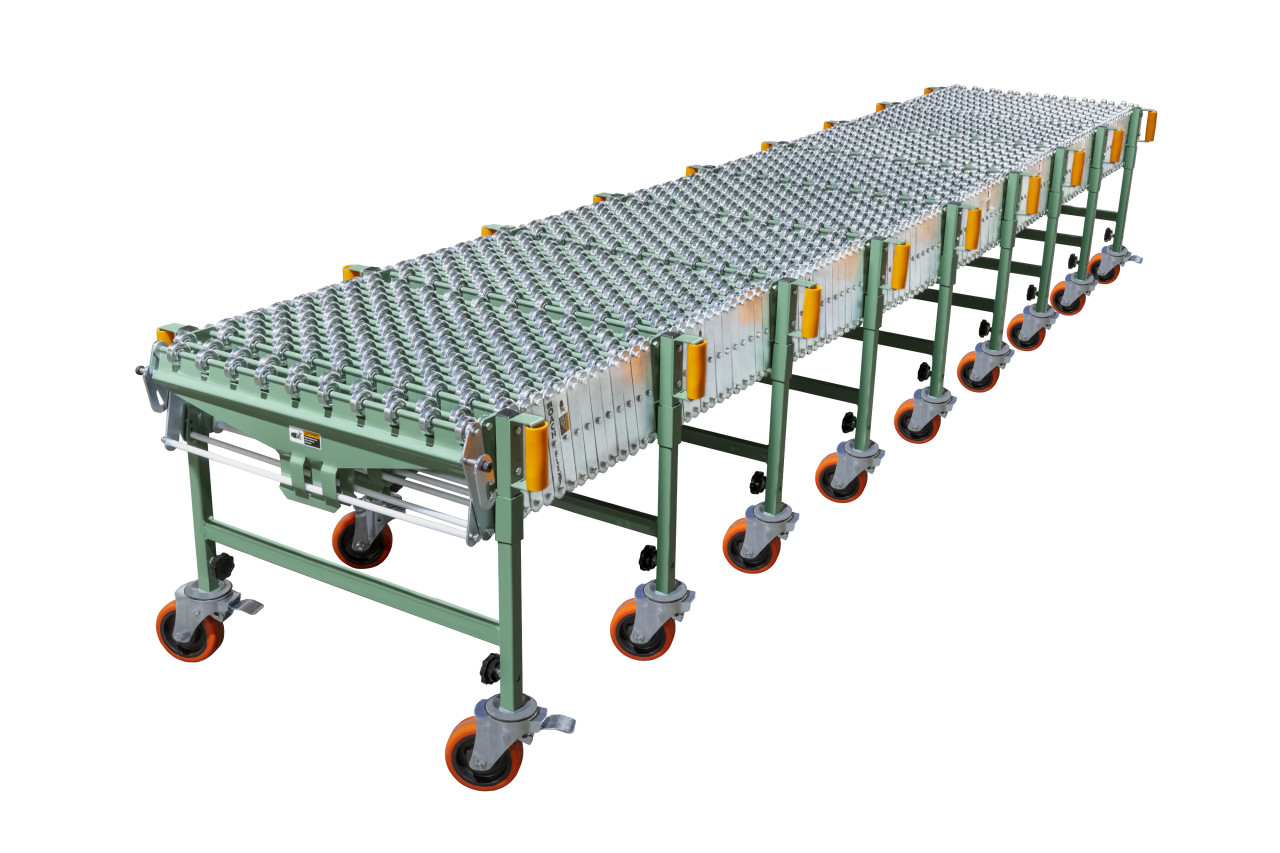

Wheeled Flex Conveyor
The WheelFlex Gravity Flex Conveyor is designed for applications where fixed conveyor is impractical and durability is essential. Its flexible frame expands, contracts, and curves to accommodate changing layout requirements, while the skate wheel surface maintains efficient gravity flow for a wide range of product types.
Engineered for adaptability, the WheelFlex features a rugged frame that supports quick reconfiguration and is ideal for operations with frequent layout changes. The ability to connect multiple units together further enhances its versatility, making it well-suited for both temporary and semi-permanent conveyor applications.
Product Videos
Specifications
Height Adjustment
31-1/2" to 42-1/2"
Side Links
Heavy duty 7-gauge steel
Casters
6" x 2"
Axles
Heavy duty 5/16" galvanized steel bolt type axle
Wheels
1-15/16" dia. prelubricated steel ball bearing stake wheel with hardened raceway
Capacity
350lb. per FT
Features
Integrated handles on each leg for repositioning
Ability to link to multiple conveyor sections
Fixed and retractable end stops
Four-point leg support connections
Solid weld construction on leg supports
One-piece wheel and axle support construction

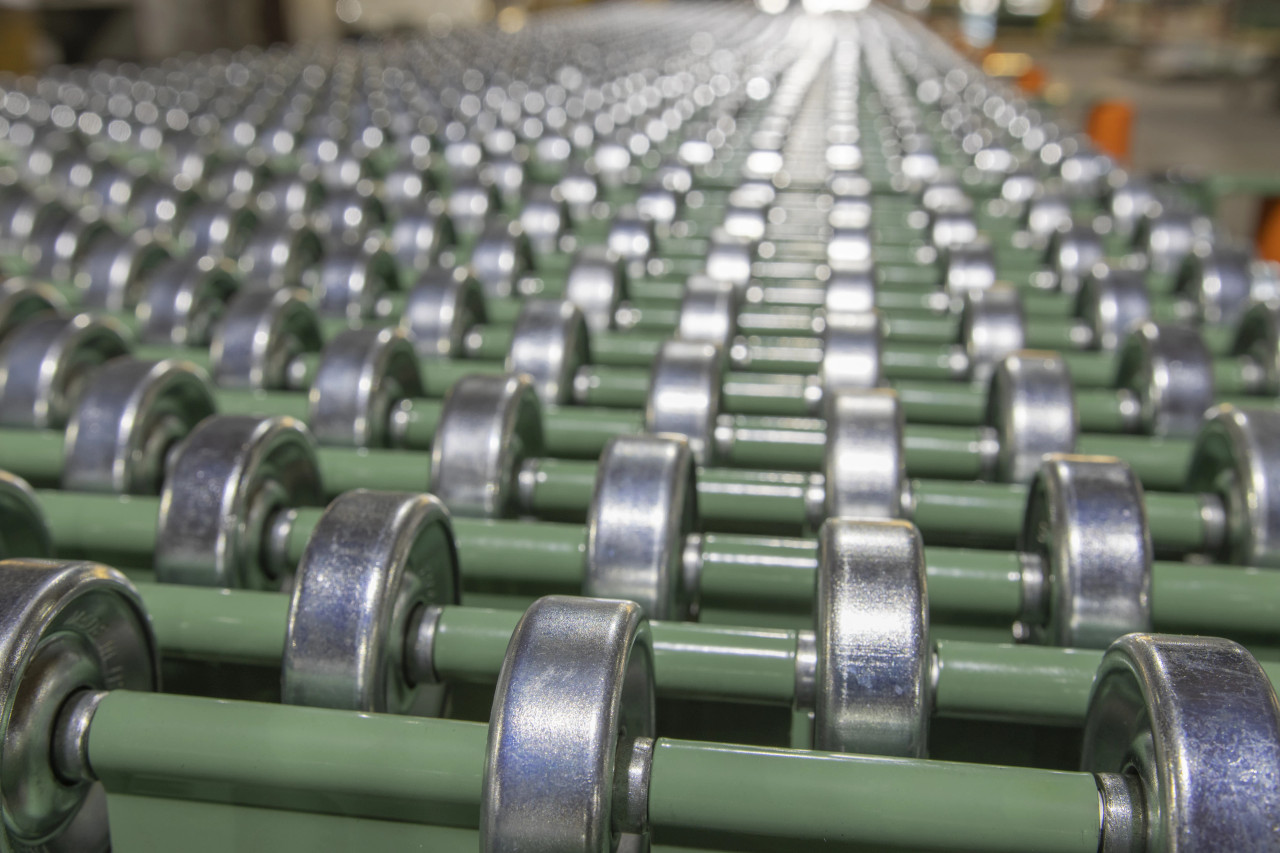

Steel skate wheels with ball bearings
