Product Description
138G Roach Galvanized Gravity Roller Conveyor - 1-3/8″ diameter x 18 gauge
These Galvanized Steel Gravity Roller Conveyor Straight Sections are available in 5' or 10' lengths with either high or low roller positioning.
- ROLLERS: 1-3/8″ diameter x 18 gauge Roller capacity is 50 lbs.
- AXLES: 1/4″ diameter galvanized steel shaft, spring loaded.
- FRAMES: Formed galvanized steel channel 2-1/2″ x 1″ x 12 ga.
- COUPLINGS: Hook and rod; hooks on one end and rod (“stud”) other end.
- BEARINGS: Integral plain ball bearings, zinc plated, oiled.
Also need stands and Knee Braces?
These 138g galvanized steel gravity roller conveyor sections fit with the Roach SM series medium duty stands and Knee Bracing and Adjustable Supports (sold separately).
Additional safety information:
To prevent pinch points that exist when gravity conveyors are permanently attached to power conveyors, use connector brackets with safety pop out rollers. Call us for more information at (320) 485-4974.
Product Videos

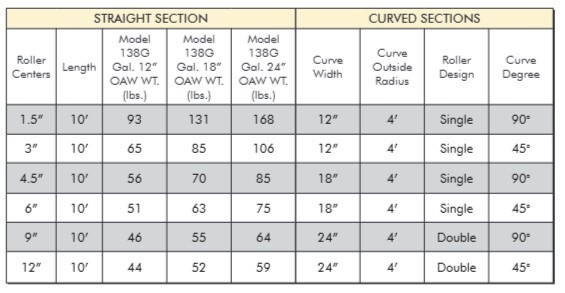

Specifications
Rollers
1-3/8″ dia. x 18 ga. Roller capacity is 50 lbs.
Frames
Formed galvanized steel channel 2-1/2″ x 1″ x 12 ga.
Frame Capacity
Galv. steel 350 lbs. max. distributed live load per 10′ section, or 1300 lbs. per 5′ section.
Bearings
Integral plain ball bearings, zinc plated, oiled.
Couplings
Hook and rod; hooks on one end and rod (“stud”) other end.
Axels
1/4″ dia. galvanized steel shaft, spring loaded.
