Product Description
Cantilever Racking Uprights
SJF's heavy duty structural cantilever uprights (also known as lumber racking) are designed to work specifically with SJF cantilever bases, arms and braces. Now you can use SJF uprights, arms, braces and bases to create your own unique storage racks specifically designed to fit your storage rack needs.
Heavy duty cantilever rack upright specs:
- Available heights: 96", 120", 144" and 192" heights
- Column depth: 8-1/8" column depth
- Column width: 5-1/4" column width
- Color: Light gray
- Bolt pattern: 2.75" x 4"
- Uprights have holes on both front and back to use for single and/or double sided configurations
- Fits SJF bases, arms, braces (sold separately)
- *Hardware not included - See requirements below
*Note: Single sided uprights require one base and double sided uprights require two bases.
*Hardware for cantilever racking (sold separately):
Click here for corresponding hardware

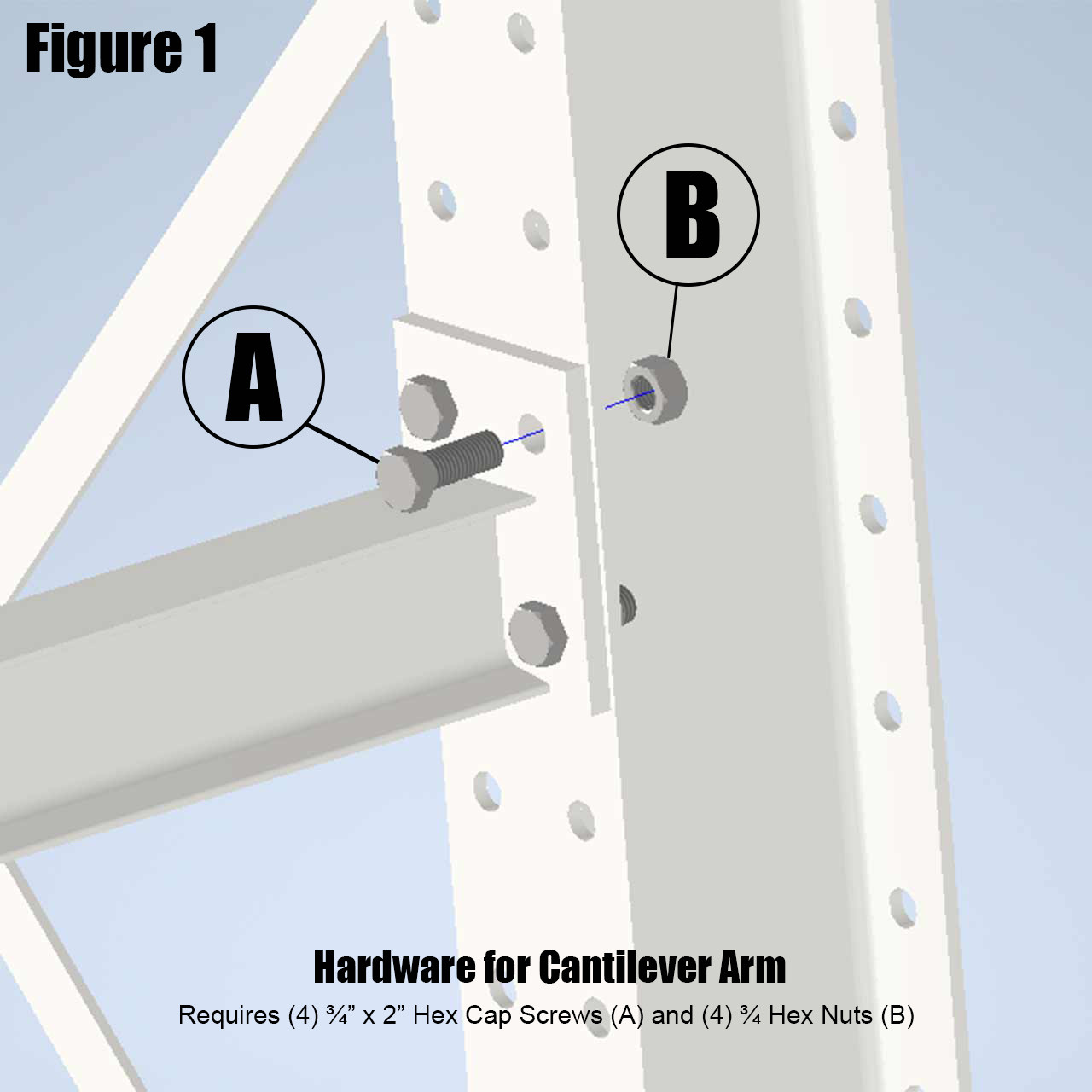

- Arms - requires (4) ¾” x 2” Hex Cap Screws & Nuts (Figure 1, A and B)
- Bases - requires (6) ¾” x 2” Hex Cap Screws & Nuts (Figure 2, C and D)

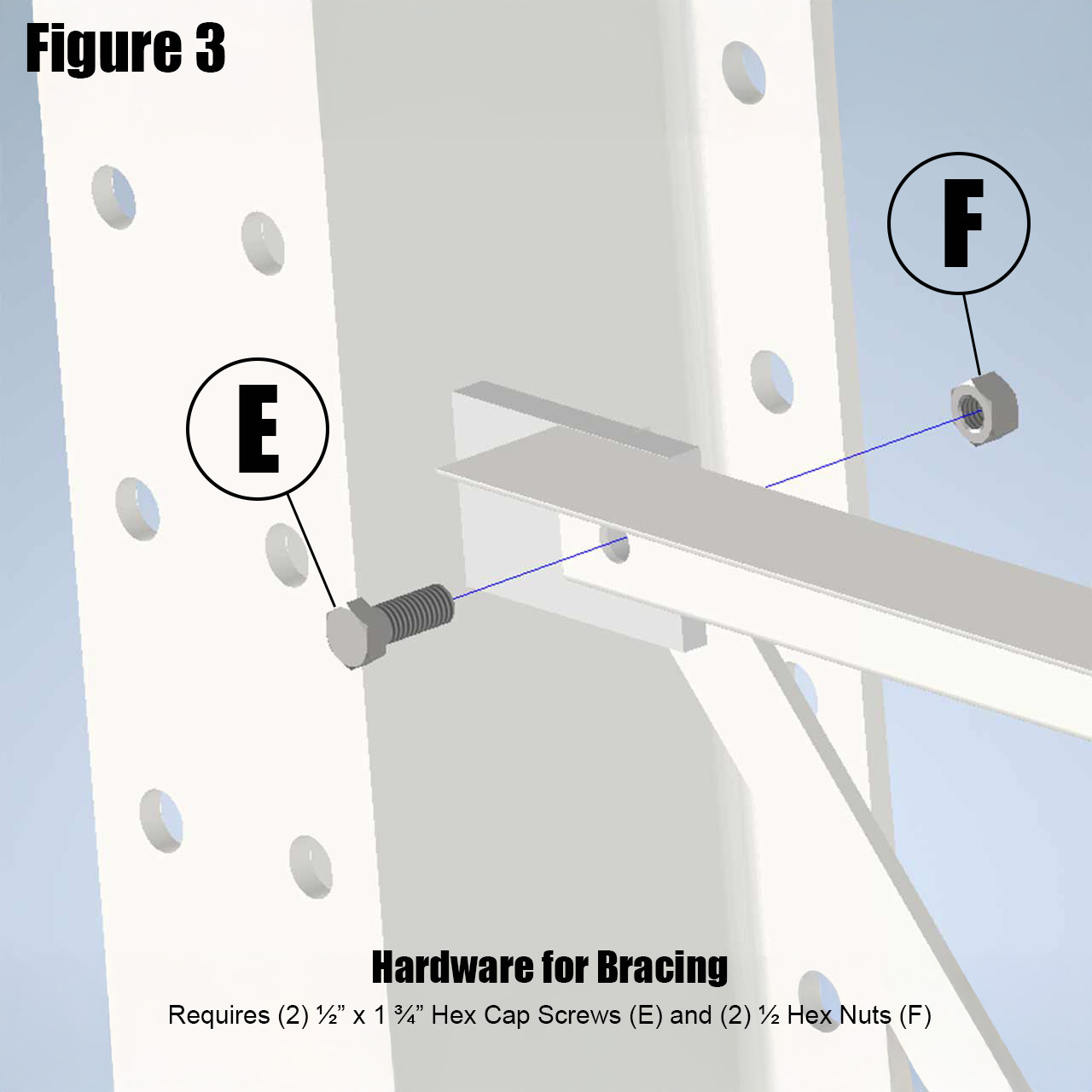

- Braces - requires (2) ½” x 1 ¾” Hex Cap Screws & Nuts (Figure 3, E and F)
