Cantilever Rack Hardware

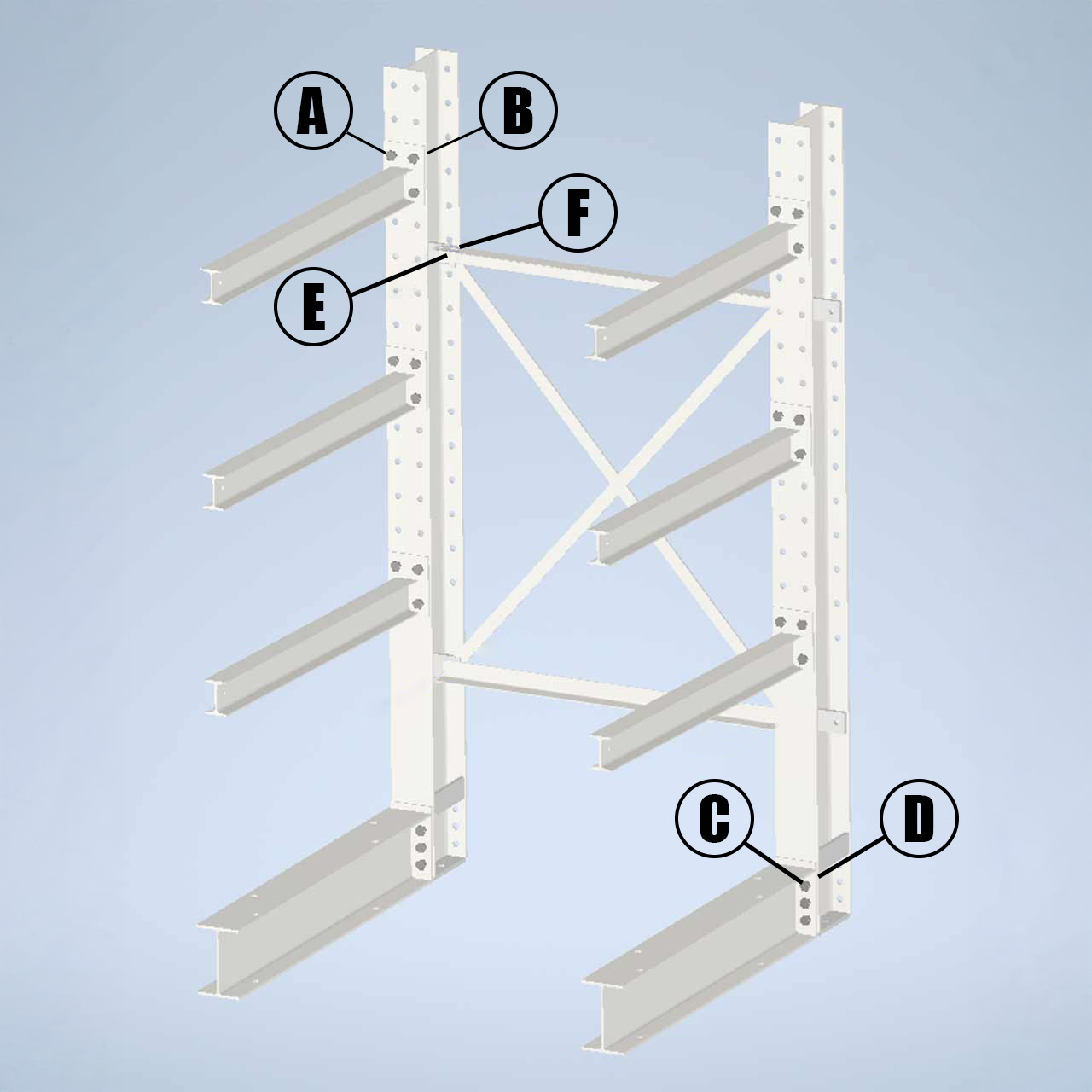

The following hardware parts are required for each of these individual cantilever rack components:
Figure 1 - Cantilever Arm
- Requires (4) ¾” x 2” hex cap screws & (4) ¾” nuts per arm - A and B
Figure 2 - Cantilever Base
- Requires (6) ¾” x 2” hex cap screws & (6) ¾” nuts per base - C and D
Figure 3 - Horizontal and/or X Brace
- Requires (2) ½” x 1 ¾” hex cap screws & (2) ½” nuts per brace - E and F
