Product Description

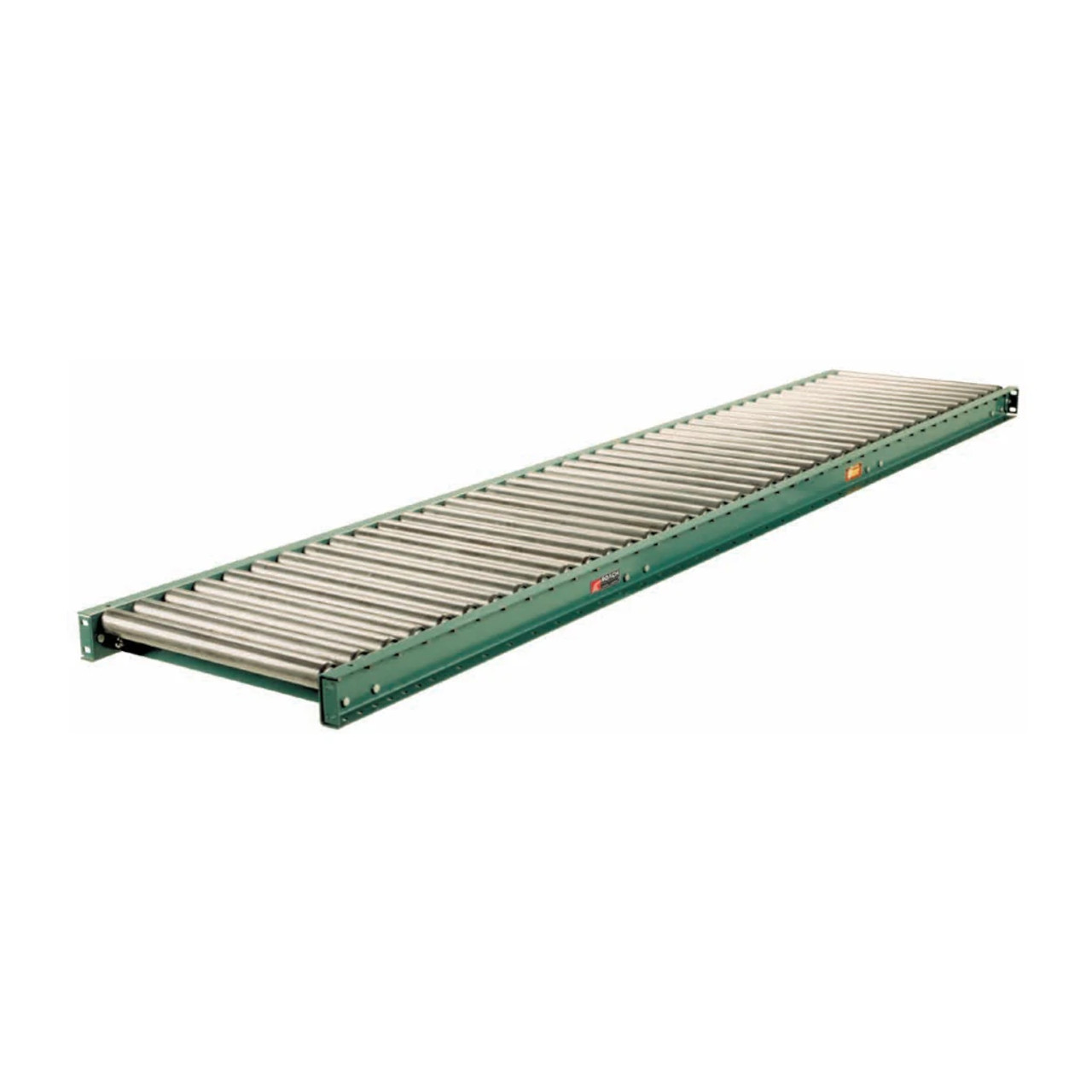

Gravity Roller Straight- 1.9" Roller - 12 ga.
The Roach (192S) Gravity Roller Conveyor is a heavy-duty, non-powered conveyor system build for smooth and efficient handling of medium to heavy loads. Engineered for longevity and versatility, it is ideal for transporting cartons, boxes, bins, and other flat-bottom items through warehouses, distribution centers, or any facility seeking reliable, low-maintenance solutions.
Due to the gravity-driven design, the Roach 192S operates at peak performance without the need for motors, drives, or electrical controls--helping to reduce failure points, operational downtime, and energy costs.
Common Applications:
- Shipping & receiving stations
- Buffer or accumulation lanes
- Loading and unloading zones
- Packaging and assembly lines
- Warehouse storage & order fulfillment
- Workstations in industrial facilities
Roach conveyors are built in the USA and are backed by proven, reliable performance for over 70 years.
Product Videos
Specifications
Rollers
1.9" x 12 ga. steel tubing with smooth swagged end
Frames

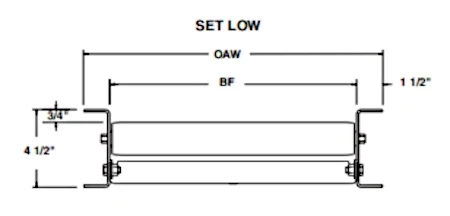

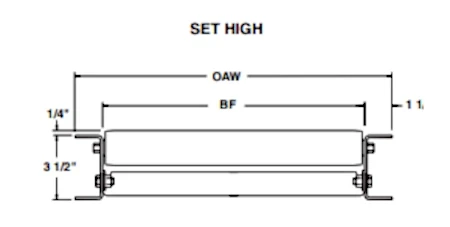

Formed steel painted channel - Set High: 3-1/2" x 1-1/2" x 10 ga -- Set Low: 41/2" x 1-1/2" x 10 ga
Roller Capacity
260 lbs per roller
Frame Capacity
Maximum 1300 lbs. live load per 10' section; 3200 lbs at 5' centers
Bearings
Zinc plated, grease packed integral plain ball bearings
Coupling
Butt Type
Axels
Spring loaded, 7/16" hex shaft
Features
Maintenance-free gravity operation--no power required
Precision, grease-packed ball bearings for smooth, quiet operation
Quick roller removal and replacement with no tools required
Made with durable, heavy-duty material
Compatible with Roach curves, spurs, and accessories
Made in USA providing long-term durability and reliability
