Cantilever Racking Adder Kit - Double Sided
Cantilever racking (also referred to as lumber racks or pipe rack) are a strong heavy duty storage shelving system. They are specifically designed for storing long and bulky items or materials such as lumber, plywood, PVC, steel pipe and metal or bar stock pipes, and more. For this reason, cantilever storage rack is the preferred solution for storing heavy duty items such as furniture, boats, steel bar stock, PVC pipe, iron pipe and a wide array of long, bulky and/or heavy items.

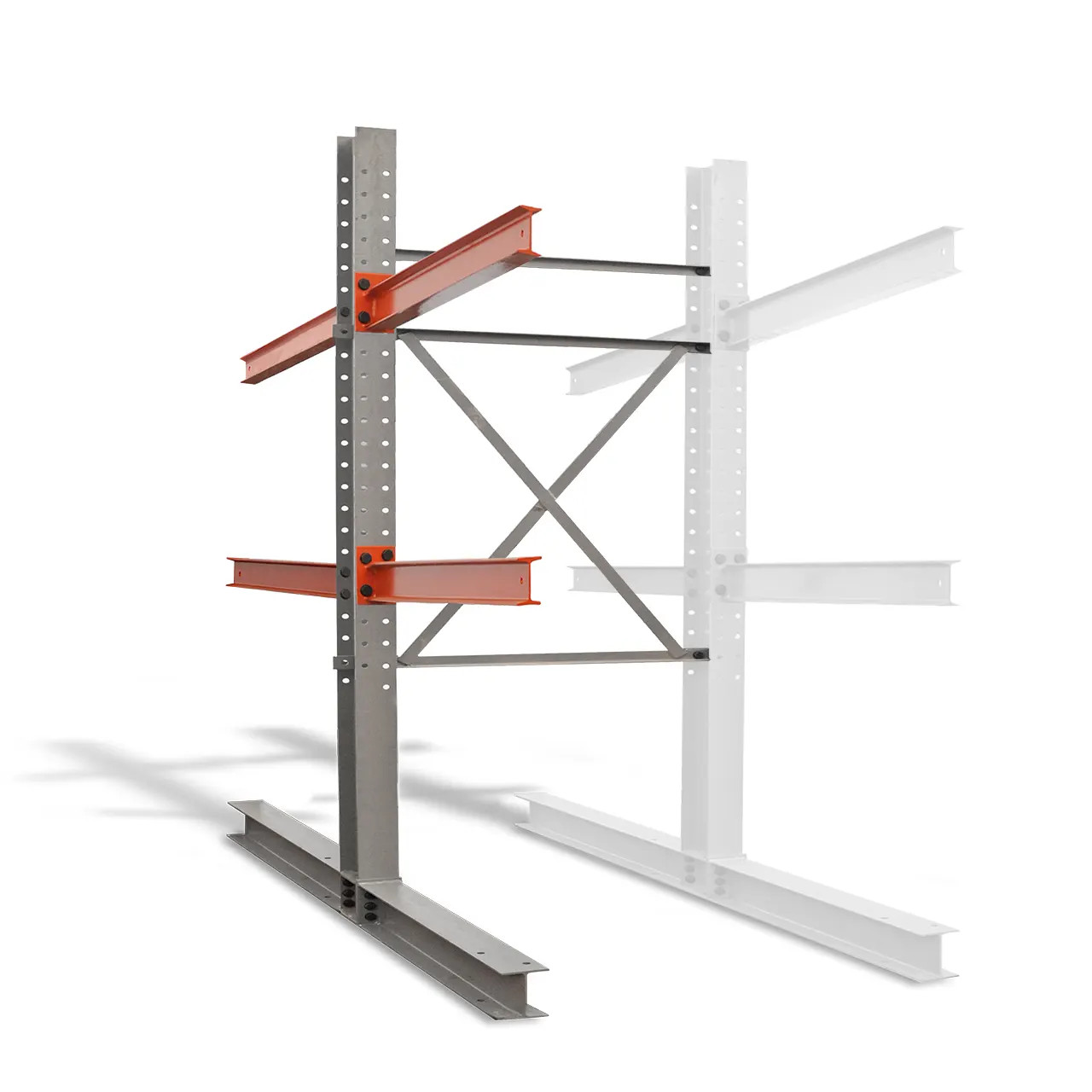

Our double sided structural cantilever racking adder kits come complete with all the components and hardware needed to set up your add-on cantilever racking system. Now you can create your own unique cantilever and lumber rack system specifically designed to fit your storage rack needs.
Each double sided add-on kit contains:
- One upright column - Choose either 96", 120", 144" or 192" heights
- *Note: All uprights have holes on both front and back for single or double sided future use
- Two bases - 36", 48" or 60" lengths (one per side)
- Four or six arms - 36", 48" or 60" lengths
- Bracing - 48" or 60" x-braces and/or horizontal bracing
- Bolt pattern for arms: 2.75" x 4"
- Hardware included except anchors
- Color is safety orange and gray
*Capacity is based on each individual configuration.
