Product Description
MHS Conveyor H Stand Supports
MHS Roll Formed H-Stand Conveyor Supports
Roll formed supports feature a modular bolt together design which allows for ease of adjustability. The roll formed shape also has a pattern of holes that give flexibility for knee bracing, sway bracing, running safety cables, and hanging of conduit.
Key Features:
- Standhead: Formed steel angle. Two slots in top flange are for bolting to bottom flange of bed sections. Curved slot in side permits pivot adjustment up to 30 degrees in either direction.
- Leg upright: Steel channel, 7/16” diameter holes for bolting to vertical slots in boot and standhead.
- Boot: Steel channel boot upright welded to footplate. Two 5/8” diameter holes in footplates for permanent floor mounting. Vertical slots for bolting to leg uprights.
- Capacity: 1500 lbs., typical, per standard Roll Formed floor support
- 1.5" Center to Center: Designed with precise spacing for optimal functionality.
Features Benefits:
- Bolt-together construction: Can remove & re-install upright or cross-member to fit around existing equipment.
- Allows installation flexibility: Adjust cross-member heights to simplify mounting of cable trays, conduit, piping, etc.
- Mount to options: Roll formed hole patterns on uprights and cross-members provide easy mounting for MHS supplied parts such as knee braces and sway bracing
Product Videos
Specifications
Standard Equipment

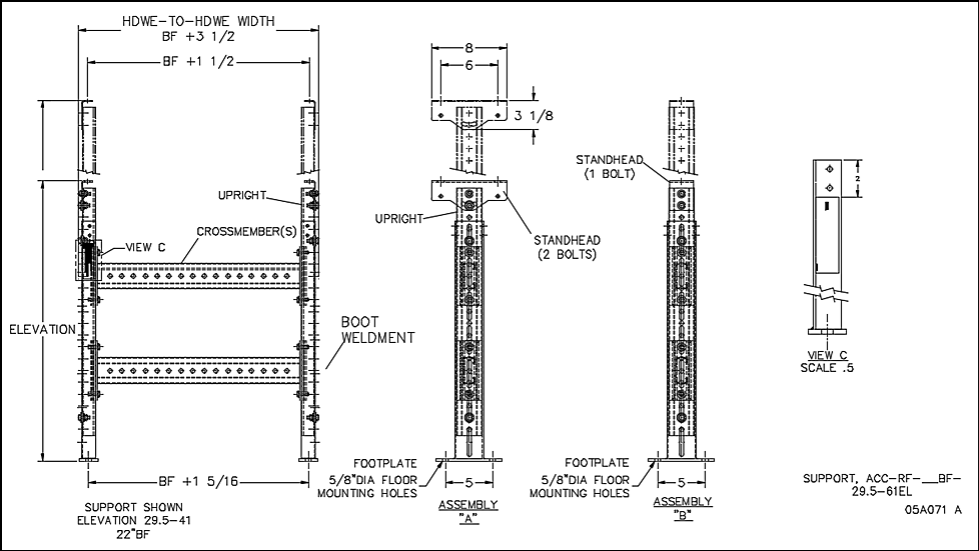

Consists of (2) standheads, (2) legs upright with bolt in crossmember(s), and (2) boot weldments with footplates.
Maximum support crossmember center distance
Not to exceed 54”.
Capacity
1500 lbs.
Welded butt joints
MHS conveyor with welded butt joints has been designed to RF Support on ITR Curve be supported on 12' centers maximum.
Bolted butt joints
MHS conveyor with bolted butt joints has been designed to be supported at every bed joint.
