Product Description

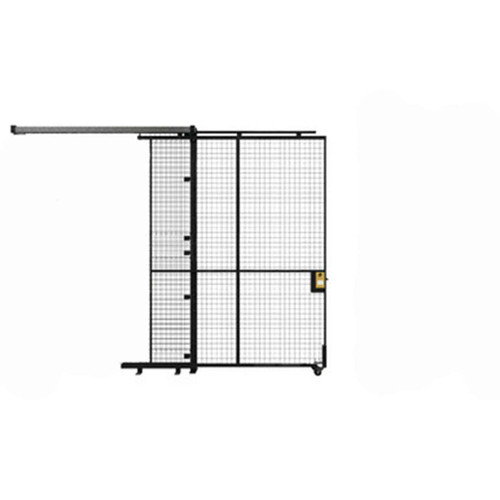

Welded Wire Security Guard - Slide Door
Features include:
- Standard and tailored dimensions: We offer a variety of panel, ceiling, door, and lock options, along with configurations to accommodate a wide range of materials and security requirements.
- Ready for immediate shipment: The sizes in highest demand can be dispatched within 48 hours.
- Installation speed increased by five times: Our patented hook and drive pin system effortlessly drops and securely locks in place, eliminating the need for nuts and bolts.
- Crafted for enhanced security: Our interior panel-to-post attachments offer a superior level of security compared to standard (bolted) wire partitions.
- Comprising: (10) 5/16 Nuts, (2) Anchor Bolts, (2) 4-Wheel Trolleys, (2) Door Stop Brackets, (3) Carriage Bolts, (6) 5/16-18 x 3-1/2 Carriage Bolts, (8) 1/4-20 Hex Nuts, and (8) 1/4-20 x 1-3/4 in Carriage Bolts.
- 6-10' are double doors.
Door Dimensions: Over All Opening Size:
| Slide Door 3 x 8 | 33-1/2" x 8' |
| Slide Door 4 x 8 | 45-1/2" x 8' |
| Slide Door 5 x 8 | 57-1/2" x 8' |
| Slide Door 6 x 8 | 69-1/2" x 8' |
| Slide Door 8 x 8 | 93-1/2" x 8' |
| Slide Door 10 x 8 | 117-1/2" x 8' |
| Slide Door 3 x 10 | 33-1/2" x 10' |
| Slide Door 4 x 10 | 45-1/2" x 10' |
| Slide Door 5 x 10 | 57-1/2" x 10' |
| Slide Door 6 x 10 | 69-1/2" x 10' |
| Slide Door 8 x 10 | 93-1/2" x 10' |
| Slide Door 10 x 10 | 117-1/2" x 10' |
